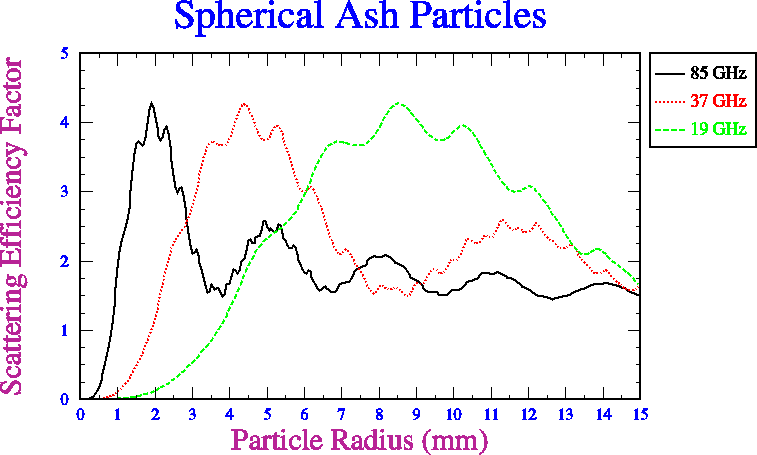

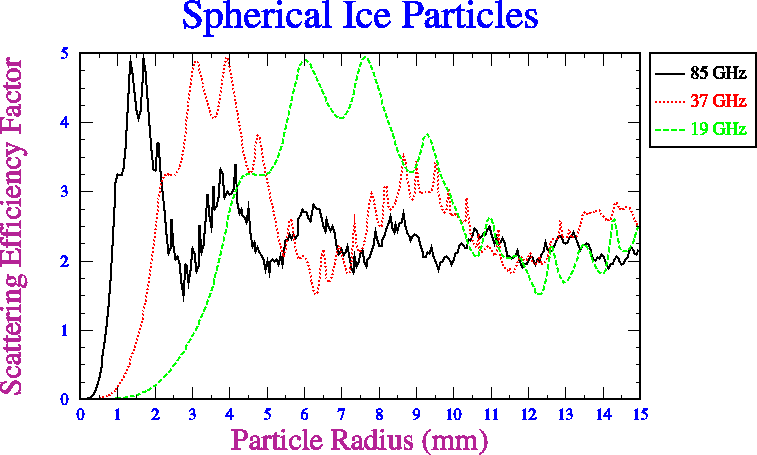

Figure 7. The scattering efficiency factor for spherical ice and ash particles as a function of radius. The index of refraction of ice [Tiuri et al., 1984] is different than the index of refraction of volcanic ash [Adams et al., 1995], which results in different scattering efficiencies for ice and ash particals.
