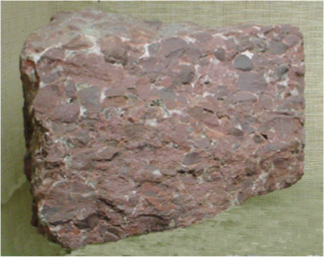

Conglomerate


The Copper Harbor Conglomerate is partly made up of alluvial fans. The alluvial fans are more obvious on the Keweenaw than on Isle Royale, where the sandy and silty units and more abundant and cobble sizes are generally less.  This alluvial fan hypothesis was proposed by Douglas Elmore in 1984. Many people have debated it and most support it. We make hypotheses like this to help us understand the conditions of formation of this remarkable rock formation.  There are some mind stretching implications: 1.  It implies a mountain on one side.  Where is that mountain now?  2. It suggests desert conditions. Without land plants, it is likely that the Neoproterozoic may have been a “wet” desert.

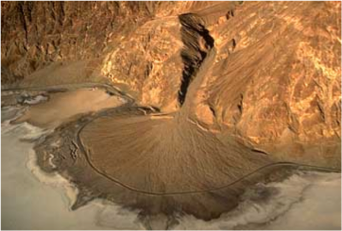

Alluvial Fans

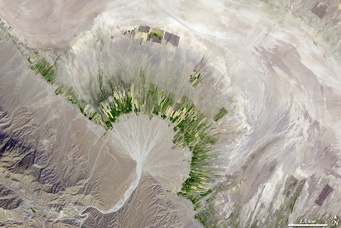

Alluvial Fan Images

Alluvial Fan Images (Oregon U)

Alluvial Fan Definition

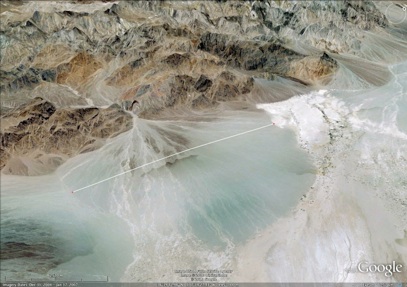

This Alluvial fan near Stovepipe wells in Death Valley CA is 9.5 km wide

     Things to read:

Elmore GSA Bulletin

Elmore Sedimentology

The Alluvial Fan Problem

Alluvial Fans of the Himalaya

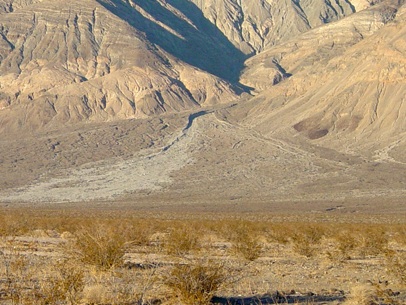

Debris flow deposits on an alluvial fan in Panamint Valley at the base of Panamint Butte in the Cottonwood Mountains in Death Valley National Park (Inyo County). Note how the stream channel is incised near the top of the fan, but the debris flow deposit is spread out on the lower fan surface.

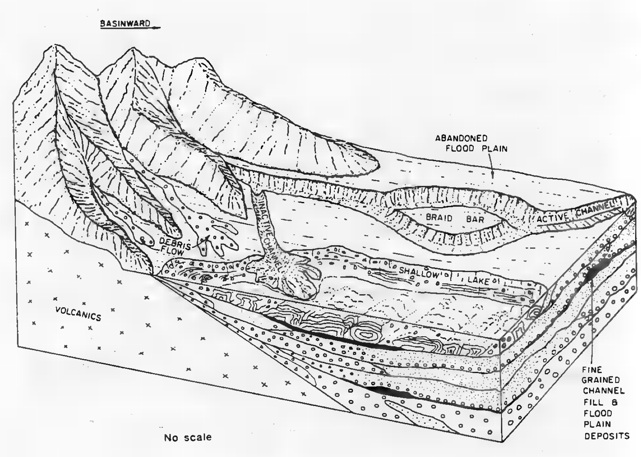

Sketch map from Elmore (1984) showing the sedimentary environment of the Copper Harbor Conglomerate.

The Copper Harbor Conglomerate occurs on the SW sector of Isle Royale and has been studied by N K Huber, USGS OFR 754-B. Huber gives the following introductory comments:

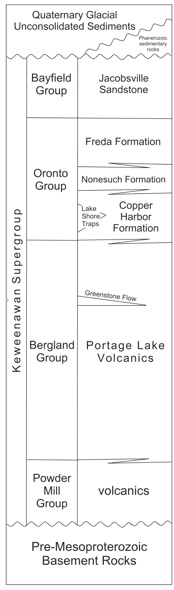

The Copper Harbor Conglomerate, in its type area on the Keweenaw Peninsula of Michigan, was named and defined so as to include a thick sequence of sedimentary rocks, previously separated (in ascending order) into the Great, Middle, and Outer Conglomerates, with intervening lava flows, the Lake Shore Traps (Lane and Seaman, 1907, p. 690-691; Lane, 1911, p. 37-40). On the Keweenaw Peninsula, the Copper Harbor Conglomerate conformably overlies the Portage Lake Volcanics (middle Keweenawan), and locally the two formations interfinger (fig. 2; White and Wright, 1960). The Portage Lake Volcanics consists primarily of lava flows; minor sedimentary rocks, similar to those within the Copper Harbor Conglomerate, are intercalated between flows (hereafter referred to as interflow sedimentary rocks). The transition between the two formations reflects a gradual cessation of volcanic activity and the growing dominance of a sedimentary regime. The Copper Harbor Conglomerate is overlain by the Nonesuch Shale and Freda Sandstone (upper Keweenawan).

Approximately four-fifths of Isle Royale is underlain by volcanic flows and minor clastic rocks of the Portage Lake Volcanics, which dip 10°-20° to the southeast in the vicinity of their contact with the overlying Copper Harbor Conglomerate (Huber, 1973b,c). The Copper Harbor Conglomerate underlies the remaining one-fifth of Isle Royale and is confined to the southwestern part of the archipelago; it dips 5°-28° to the southeast. The contact between the Copper Harbor Conglomerate and the Portage Lake Volcanics appears to be conformable; the top of the Copper Harbor Conglomerate, however, is not exposed. If the Nonesuch Shale and other formations that overlie the Copper Harbor Conglomerate on the Keweenaw Peninsula are present in the Isle Royale area, they lie beneath Lake Superior to the southeast.

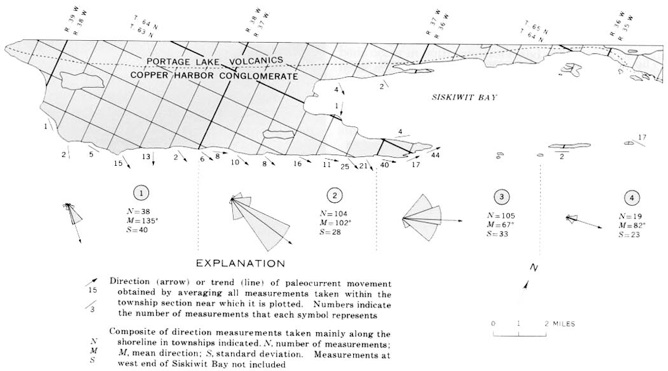

Consisting of fluvial subaerial sandstones, siltstones and conglomerates, The CHC shows transport directions that generally spill into the rift valley (see below). Huber gives many details of the CHC on Isle Royale in his OFR.
